WAP-4000 |
 |
| |
| [Overview].
|
| |
| 54/108Mbps Super
G Wireless LAN Access Point |
| |
 |
|
| |
WAP-4000 is an IEEE 802.11g Wireless Access Point.
IEEE 802.11g uses 2.4GHz frequency band, the
same as IEEE 802.11b; but it provides almost 5 times
throughput rate than 802.11b. With the latest
innovative Super G technology integrated, the maximum
data rate of WAP-4000 is 108Mbps, which
doubles the speed of standard 802.11g. WAP-4000
is also backward compatible and interoperable with
IEEE 802.11b compliant wireless devices. Except
for 64/128bit WEP encryption, WAP-4000 also
integrates WPA (Wi-Fi Protected Access) and 802.1x
authentication. Cooperating with a RADIUS server
can make your wireless LAN more secure then ever.
Provided with one reversed-polarity SMA male
connector, WAP-4000 is easy to connect external
antenna and booster to extend the wireless distance
Five operational modes including AP, AP Client,
Bridge, Multiple Bridge, and Repeater widen the
usage of WAP-4000. Being a standard Wireless AP,
WAP-4000 together with any other wireless access
points provides the seamless integration between
Ethernet network and Wireless network and also
offers the roaming for all the Wireless mobile devices.
AP client mode turns Ethernet devices into a
wireless client. As switching to wireless bridging
operation mode, having two or more LANs in different
buildings connected is no more need to through physical
and costly wires, WAP-4000 installed in
these buildings soon provides 54Mbps transfer rate
24/7 without any additional costs. The repeater
mode makes WAP-4000 acting as a wireless AP and
bridge at the same time, which facilitates user
to
build up a large wireless network
* Only H/W v2 or above version supports Super G
and Repeater mode |
| |
|
| [Product Application] |
Secured and managed enterprise-class
WLAN

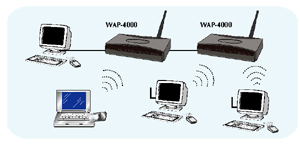

In an enterprise or campus area, some mobile
users may need a continuous network connection.
By installing WAP-4000 in the area, mobile users
can be always on the network by installing a wireless
card in their notebook or PDA. The roaming capacity
allows users connected to the network to transparently
roam from one access point to another
Wireless ISP
A first mile solution is now simple with PLANET's
wireless devices. No wiring is needed and the provided
bandwidth can be up to 54Mbps. By installing WAP-4000
equipped with omni-directional antenna in the user's
neighborhood, all users around the AP can easily
connect to Internet through the access point by
installing a wireless PCI card or a WAP-4000 in
AP client mode. By using a directional antenna,
the distance between users and AP can be a few kilometers.
LAN to LAN or LAN to Multi-LAN
Wiring inside your own building may be an easy job,
but it is hard if network cabling needs to route
through some public areas or difficult wiring environments.
WAP-4000 can work in bridge mode to provide a robust
solution for connecting two or more buildings wired
Ethernets together. By extending distance using
PLANET's external antenna, the installation is easy
and the distance between buildings can be 10km or
more |
| |
 |
| |
|
| [Key
Features] |
+ Wireless LAN IEEE802.11g and IEEE802.11b compliant
+ Strong network security with 802.1X authentication,
and 64/128-bit WEP
+ Supports WPA (Wi-Fi Protected Access) for both
802.1x and WPA-PSK
+ Strong network security with 802.1X authentication,
and 64/128-bit WEP encryption
+ Supports WPA (Wi-Fi Protected Access) for both
802.1x and WPA
+ One detachable reverse-polarity SMA connectors
can connect to external antenna for expanding
connection distance
+ Super G mode efficiently raises the data transfer
rate up to 108Mbps
+ Auto Fall-Back Data Rate for Long-Distance Communication
and Noisy Environments
+ Adjustable antenna transmit power
+ Features Roaming, Best Access Point Selection,
Load Balancing, and Network Traffic Filtering
+ Support 63 clients to connect the network. (For
best performance, the suggested maximum clients
number of one
WAP-4000 in AP mode is 25.)
+ Provide Windows-base configuration utility and
Web Configuration
+ Support DHCP Server and Client
+ Support MAC Filter |
| |
|
| [SPECIFICATION] |
| |
|
Product |
|
Model |
WAP-4000 |
|
Standard
|
IEEE
802.11b, IEEE 802.11g |
|
Signal
Type |
DSSS
(Direct Sequence Spread Spectrum) |
|
Modulation |
BPSK
/ QPSK / CCK / OFDM |
|
Port |
10/100Base-TX
(RJ-45) x 1 |
|
Antenna |
Detachable
Dipole Antenna x 1 |
|
Antenna
Connector |
Reversed
Polarity SMA Male |
|
Output
Power |
17dBm |
|
Sensitivity |
802.11b
11 Mbps (CCK): -82dBm
5.5 Mbps (QPSK): -86dBm
1, 2 Mbps (BPSK): -90dBm
(typically @PER < 8% packet size
1024 and @25━C +/- 5━C)
802.11g 54 Mbps: -72dBm
48 Mbps: -72dBm
36 Mbps: -76dBm
24 Mbps: -79dBm
18 Mbps: -82dBm
12 Mbps: -86dBm
9 Mbps: -89dBm
6 Mbps: -90dBm
(typically @PER < 8% packet size
1024 and @25━C +/- 5━C) |
|
Operating
Mode |
AP,
AP Client, Wireless Bridge, Multiple
Bridge, Repeater |
|
Security |
64/128-bit
WEP encryption Password Protect WAP
for 802.1x and WPA-PSK MAC Filtering
SSID Broadcast Disable function |
|
Frequency
Band |
2.4
GHz ~2.484GHz |
|
Channel |
FCC:
11 Channels (US, Canada)
ETSI: 13 Channels (Europe)
TELEC: 14 Channels (Japan) |
|
Data
Rate |
Super
G mode
Up to 108Mbps
802.11g
Up to 54Mbps (6/9/12/18/24/36/48/54)
802.11b
Up to 11Mbps (1/2/5.5/11) |
|
Operating
Environment |
Temperature
0~55━C
Humidity
5~95% (non-condensing) |
|
LED |
Power:
steady green
WLAN: green for wireless connectivity/activity
LAN: green for link, blink for activity |
|
Input
Power |
DC
5V, 2.5A |
|
Certification |
FCC,
CE |
|
Dimension |
196
x 120 x 31 mm (L x W x H) |
| |
| |
| [Ordering
Information] |
| WAP-4000.........
54/108Mbps Super-G Wireless Access Point with Bridge |
|
 |
| |
 |
|
|
|
|
|
|
