WRT-410 |
 |
| |
| [Overview].
|
| |
| 54/108Mbps Super
G Wireless LAN Broadband Router |
| |
 |
|
| |
WRT-410 is a broadband router integrated with
an 802.11g Access Point. IEEE 802.11g uses 2.4GHz
frequency band, the same as IEEE 802.11b; but it
provides almost 5 times throughput rate than 802.11b.
With the latest innovative Super G technology integrated,
the maximum data rate of WRT-410 is
108Mbps, which doubles the speed of standard 802.11g.
WRT-410 is also backward compatible and
interoperable with IEEE 802.11b compliant wireless
devices. Except for 64/128bit WEP encryption,
WRT-410 also implements WPA (Wi-Fi Protected Access)
and 802.1x authentication. Cooperating with a
RADIUS server can make your wireless LAN more secure
then ever. Provided with one reversed-
polarity SMA male connector, WRT-410 is easy to
connect external antenna and booster to extend the
wireless distance
With the built-in AP on the LAN side, all wireless
clients can share the same broadband Internet connection
and access other Ethernet devices on the LAN through
the router's built-in 4-port switch. Virtual server,
DMZ and natural firewall functions provide additional
security and flexibility for both wireless and wired
LAN users. |
| |
|

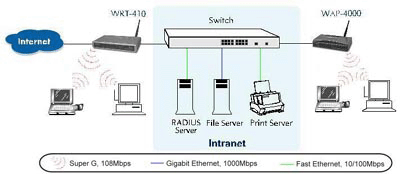

| [Product Application] |
Secured WLAN with Internet
Connection
To get the benefit of high-speed wireless
networking to all home or office users, the WRT-410
is an
ideal solution. Locate the WRT-410 at a central
point in the office or home and connect it to an
ADSL/cable modem. A Notebook or a remote desktop
can easily connect to the Internet by installing
a
WL-3560 or WL-8310 54Mbps wireless adapter. Furthermore,
the WPA mechanism of WRT-410 can
effectively prevent your information from eavesdropping
by unauthorized users |
| |
 |
| |
|
| [Key
Features] |
+ 2.4GHz ISM band, unlicensed operation
+ Strong network security with WPA (Wi-Fi Protected
Access), 802.1x authentication, and 64/128-bit
WEP encryption
+ Dual-standard capability: 802.11g and 802.11b
compliant
+ Super G mode provides up to 108Mbps data rate
+ Supports DHCP server
+ Web Configuration provide a user friendly interface
for the user to configure through web browser
+ Support MAC Filter
+ Build-in 4 -port switch
+ Provides Setup Wizard for the user to configure
easily in the first time |
| |
|
| [SPECIFICATION] |
| |
|
Product |
| Model |
WRT-410 |
| Standard |
IEEE
802.11b, IEEE 802.11g |
| Signal
Type |
DSSS
(Direct Sequence Spread Spectrum) |
| Modulation |
BPSK
/ QPSK / CCK / OFDM |
| Port |
WAN:
10/100Base-TX (RJ-45) * 1 LAN: 10/100Base-TX
(RJ-45) * 4 |
| Antenna |
One
Detachable Dipole Antenna |
| Antenna
Gain |
2dBi |
| Output
Power |
17dBm |
| Sensitivity |
802.11b:
11 Mbps (CCK): -82dBm
5.5 Mbps (QPSK): - 86dBm
1, 2 Mbps (BPSK): - 90dBm
(typically @PER < 8% packet size 1024 and
@25 degree C + 5 degree C)
802.11g:
54 Mbps: -72dBm
48 Mbps: - 72dBm
36 Mbps: -76dBm
24 Mbps: -79dBm
18 Mbps: -82dBm
12 Mbps: -86dBm
9 Mbps: -89dBm
6 Mbps: -90dBm
(typically @PER < 8% packet size 1024 and
@25 degree C + 5 degree C) |
| Data
Encryption |
64
/ 128-bit WEP encryption |
| Frequency
Band |
2.4
GHz ~2.484GHz |
| Channel |
FCC:
11 Channels (US, Canada)
ETSI: 13 Channels (Europe)
TELEC: 14 Channels (Japan) |
| Data
Rate |
Super
G mode: Up to 108Mbps
802.11g: Up to 54Mbps (6/9/12/18/24/36/48/54)
802.11b: Up to 11Mbps (1/2/5.5/11) |
| Environment |
Operating
temperature: 0 ~ 55 degree C
Operating humidity: 5 ~ 95%(non-condensing)
Storage temperature: -20 ~ 70 degree C
Storage humidity: 0 ~ 95%(non-condensing) |
| Dimension |
200
x 115 x 31 mm (W x D x H) |
| Power
Requirement |
5V
DC, 2.5A |
| Electromagnetic
Compatibility |
FCC,
CE |
|
| |
| [Ordering
Information] |
| WRT-410.........
54/108Mbps Super-G Wireless Broadband Router |
|
 |
| |
 |
|
|
|
|
|
|
