WAP-4030A

   [Overview].

54Mbps Wireless Access Point w/bridge, inter-building


The WAP-4030A supports both IEEE 802.11b and IEEE 802.11g standards. You can use it to connect to
an existing WLAN, or to build up a new wireless LAN. Except essential AP mode, WAP-4030A provides
Repeater, Bridge, and Client modes to accommodate all kinds of network topology. High data rate
(up to 54Mbps) support allows faster communication between LAN and WLAN. Maximize network
efficiency via using the WAP-4030A while minimizing your network investment and maintenance costs.

The WAP-4030A provides the most security functions such as 64/128-bit WEP (Wired Equivalent
Privacy) Encryption, WPA-PSK and MAC address filter to consolidate the wireless network security.
There is no chance for the unauthorized wireless stations to access your wireless network.

With the user-friendly management interface and versatile features, WAP-4030A is the best choice to integrate your wireless and wired network seamlessly.

   [Product Application]

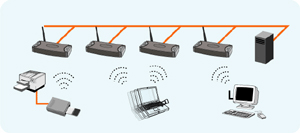

Enterprise or Campus Users
In an enterprise or campus area, some mobile users may need a continuous network connection. By
installing WAP-4030A in the area, mobile users can be always on the network by installing a wireless
card in their notebook or PDA. The roaming capacity allows users to connect to the network to
transparently roam from one access point to another.

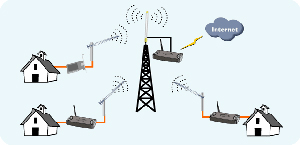

Wireless ISP
A first mile solution now is simple with PLANET¢®|s wireless devices. No wiring is required and the
provided bandwidth can be up to 54Mbps. By installing WAP-4030A equipped with omni-directional
antenna in the user¢®|s neighborhood, all users around the access point can easily connect to Internet
through the access point by installing a wireless PCI card or a WAP-4030A in Client mode.

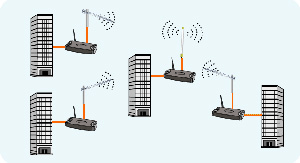

LAN to LAN or LAN to Multi-LAN
Wiring inside your own building perhaps is an easy job, but it is hard if network cabling needs to go
through some public areas or difficult wiring environments. The WAP-4030A can work in bridge or
repeater mode to provide a robust solution for connecting two or more buildings together.


   [Key Features]
+ Compliant with the IEEE 802.11g/802.11b (DSSS) 2.4GHz specification
+ High data rate up to 54Mbps network speed, Auto rate fallback
+ Seamlessly integrate wireless and wired Ethernet LAN networks
+ Interferences Provide 64/128-bit WEP Encryption and WPA-PAK authentication
+ Supports Wireless AP / Client / Repeater and Bridge mode
+ Supports MAC Address Filter
+ Provides a reverse-polarity SNA connector for external antenna connection
+ Web-based configuration
+ Supports DHCP client for auto IP addresses assignment
+ Wireless connection without the hassles and cost of cabling

   [SPECIFICATION]


Product

Model

WAP-4030A

Standard

IEEE 802.11g/802.11b (Wireless), IEEE 802.3 (Wired)

Frequency Band

2.400~2.4835GHz

Transfer Rate

802.11g: 54/48/36/24/18/12/9/6Mbps 802.11b: 11/5.5/2/1Mbps

Modulation

OFDM@54Mbps, CCK@11/5.5Mbps, DQPSK@2Mbps and DBPSK@1Mbps

Radio Technology

Direct Sequence Spread Spectrum (DSSS)

Antenna

External detachable dipole antenna

Work modes

Client Access Point Repeater Point to Point Point to Multi-Point

Channel

FCC: 11 Channels (US, Canada) ETSI: 13 Channels (Europe) ELEC: 14 Channels (Japan)

Transmit Power

16dBm (Typical)

LAN Interface

1-port RJ-45 UTP

Cabling

Category 5/5e or above, 4-pair

LED Indicators

3; PWR, WLAN, LAN

Power

12V DC, 1A

Temperature

0 ~ 55 degree C (Operating)

Humidity

10 ~ 90%, non-condensing (Operating)

Dimension

169 x 87 x 30 (mm)

Weight

155g

Emission

FCC class B, CE-mark


   [Ordering Information]
WAP-4030A......... 54Mbps Wireless Access Point w/bridge, inter-building
