WAP-7000 |
 |
| |
| [Overview].
|
| |
| 802.11a Wireless
LAN Outdoor Bridge |
| |
 |
|
| |
The WAP-7000 starts a new era for wireless building-to-building
solution by providing high
performance in 5GHz frequency. With 802.11a compliance,
the WAP-7000 can avoid the interferences
from other 802.11b/g devices and contributes the
54Mbps data rate. It is suited for enterprises,
campus
or off-site locations to extend existing wired network
coverage.
The special designed housing allows WAP-7000 to
be installed in exposed locations under the rigorous
weather conditions including heavy rain, wind, and
snow. Moreover, the WAP-7000 has built
in the lightning protector for further protection.
Provided with web-based interface, WAP-7000 is easy
to
be installed and managed. The POE (Power Over Ethernet)
design reduces power cables installation
cost and offers more flexibility when selecting
the location of WAP-7000. |
| |
|
| [Product Application] |

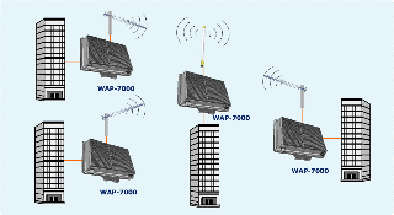

Interference Immunity Wireless
Backhaul
With the popularity of wireless network deployment,
creating the zones that provide wireless access
is
quick and easy nowadays. However, the challenge
lies in routing the network traffic between these
zones. The WAP-7000 provides a wireless backhaul
solution for such application. The local zone can
be covered by an 802.11b/g wireless access point.
The WAP-7000 which is connected to the same
network can provide a non-interference and high
speed backhaul link. |
| |
 |
| |
|
| [Key
Features] |
+ Wireless LAN IEEE802.11a 5GHz compliant
+ Available channels selectable conforming to local
radio restrictions on 802.11a standard
+ Solid housing provides protection against rigorous
weather conditions
+ Point-to-Point, Point-to-MultiPoint bridge
+ Theoretically, the operating range can up to 17KM
at 6Mbps data rate with 5GHz 18dBi antenna
installed
+ Adjustable output power: 100mW, 50mW, 25mW, 13mW,
and 6mW
+ Power over Ethernet design
+ Built-in lightning protector
+ Operating temperature: -20~70 degree C |
| |
|
| [SPECIFICATION] |
| |
|
Product |
| Model |
WAP-7000 |
| Standard
support |
IEEE802.11a
IEEE802.3
IEEE802.3u |
| Interface
|
Wireless
IEEE802.11a
One 10/100 RJ-45 port |
| Data
Rate |
6,
9, 12, 18, 24, 36, 48, 54Mbps |
| Modulation
|
OFDM |
| RF
Output Power |
18dBm
(typical) |
| Receiver
Sensitivity |
6
Mbps: -82dBm
9 Mbps: -81dBm
12 Mbps: -79dBm
18 Mbps: -77dBm
24 Mbps: -74dBm
36 Mbps: -70dBm
48 Mbps: -66dBm
54 Mbps: -65dBm |
| Media
Access Technology |
CSMA/CA |
| Lightning
Protection |
Built-in |
| Antenna
Connector |
N-Type |
| Dimensions
|
320m
x 310mm x 48mm (W x D x H) |
| Weight
|
3.05kg |
| Environmental
Specification |
Operating
temperature: -20 - 70 degree C
Storage temperature: -40 - 80 degree C
Relative humanity: 10% - 90% (non-condensing)
|
| Power
Requirement |
48V
DC, 1.7A (proprietary PoE) |
| Electromagnetic
Compatibility |
FCC,
CE |
|
| |
| [Ordering
Information] |
| WAP-7000.........
802.11a Wireless LAN Outdoor Bridge |
|
 |
| |
 |
|
|
|
|
|
|
